1. Introduction
Fasteners play a crucial role in various industries, from construction and manufacturing to automotive and aerospace. Among the vast array of fasteners, the DIN 933 4.8 – grade hexagon bolt is a commonly used and highly standardized component. DIN (Deutsches Institut für Normung) standards are widely recognized and adhered to in Germany and many other parts of the world, ensuring high – quality and interchangeable products. The 4.8 – grade hexagon bolt specified by DIN 933 has its own unique characteristics in terms of material, mechanical properties, dimensions, and applications. This article aims to provide a comprehensive understanding of DIN 933 4.8 – grade hexagon bolts.
2. Material and Mechanical Properties
2.1 Material
DIN 933 4.8 – grade hexagon bolts are typically made of carbon steel. Carbon steel is a popular choice due to its good balance of cost – effectiveness, machinability, and mechanical properties. The carbon content in the steel used for these bolts is carefully controlled to achieve the desired performance characteristics. The base material provides the fundamental strength and durability required for the bolt to perform its fastening function.
2.2 Mechanical Properties
- Tensile Strength: The “4.8″ grade designation provides important information about the bolt’s mechanical properties. The first digit “4″ indicates that the nominal tensile strength of the bolt is 400 MPa. Tensile strength is a critical property as it determines the maximum pulling force that the bolt can withstand before it breaks. In practical applications, when a joint is subjected to tensile loads, the bolt must be able to resist these forces without failure. For example, in a structural steel connection, the bolts need to hold the members together under the tension caused by the applied loads.
- Yield Strength: The second digit “8″ represents the yield ratio. For a 4.8 – grade bolt, the yield ratio is 0.8. By multiplying the nominal tensile strength (400 MPa) by the yield ratio (0.8), we can calculate the nominal yield strength, which is 320 MPa. Yield strength is the point at which the bolt begins to deform plastically. Once the stress in the bolt exceeds the yield strength, the deformation becomes permanent, and the bolt may no longer be able to perform its intended function effectively. Understanding the yield strength is essential for designing joints that can withstand the expected loads without experiencing excessive or permanent deformation.
- Elongation: Although not explicitly denoted in the grade number, 4.8 – grade bolts also have a certain elongation property. Elongation is the ability of the bolt material to stretch under load before it fractures. Adequate elongation ensures that the bolt can absorb some energy during loading and unloading cycles, reducing the risk of sudden brittle failure. It also allows for a certain degree of flexibility in the joint, which can be beneficial in applications where there are dynamic or cyclic loads.
3. Dimensions and Specifications
3.1 Thread Diameter
DIN 933 covers a range of thread diameters for 4.8 – grade hexagon bolts. Common thread diameters include M3, M4, M5, M6, M8, M10, M12, M16, M20, M24, etc., with the “M” indicating metric threads. The thread diameter is a fundamental dimension as it determines the compatibility with corresponding nuts and the load – carrying capacity of the threaded connection. For instance, a larger thread diameter generally allows for a higher load – bearing capacity, but it also requires a larger nut and may have different installation requirements.
3.2 Head Dimensions
- Hexagon Head Sizes: The hexagon head of the bolt has specific dimensions defined by DIN 933. The key dimensions include the width across flats (s) and the height of the head (k). The width across flats provides the surface area for a wrench to grip the bolt during installation and removal. A proper fit between the wrench and the bolt head is crucial for applying the correct torque without slipping or damaging the bolt head. The height of the head affects the overall strength and stability of the bolt – nut assembly. A taller head can distribute the clamping forces more evenly and provide additional resistance against bending and shear forces.
- Minimum and Maximum Dimensions: DIN 933 specifies both minimum and maximum dimensions for the head and other components of the bolt. These tolerances ensure that bolts produced by different manufacturers are interchangeable. For example, the minimum and maximum values for the width across flats (s) and the height of the head (k) must be within the specified range. This allows for consistent performance in various applications, whether the bolts are used in a precision – engineered machine or a large – scale construction project.
3.3 Thread Length

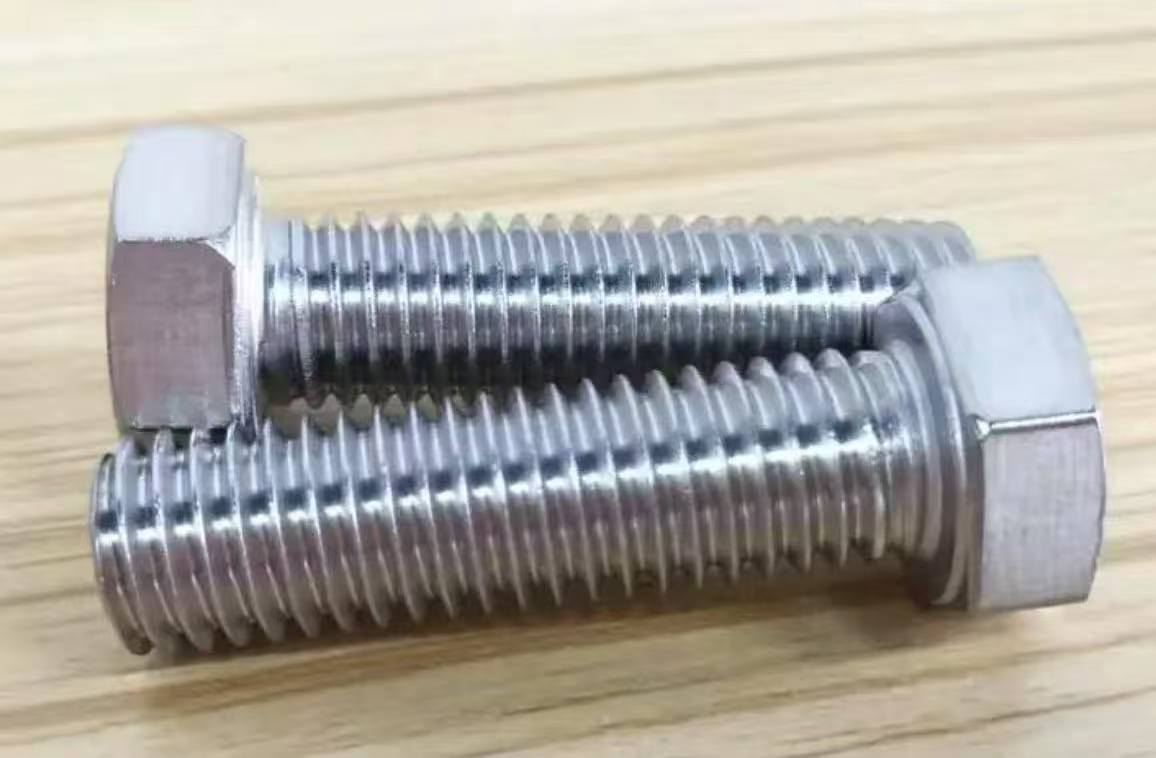

DIN 933 4.8 – grade hexagon bolts can be either fully threaded or have a partial thread length. In fully – threaded bolts, the thread extends along the entire length of the shank. This is useful in applications where maximum engagement with the nut is required, such as in situations where the bolt needs to pass through a thick component or when a high – strength connection is needed over the entire length of the bolt. For bolts with a partial thread length, the non – threaded portion of the shank provides additional strength and stability in the area where the bolt is inserted into the hole. The length of the non – threaded portion is also specified according to the overall length of the bolt and the application requirements.
4. Manufacturing Process
4.1 Cold Forming
Cold forming is a common manufacturing process for DIN 933 4.8 – grade hexagon bolts. In this process, the bolt blank is formed at room temperature by applying high pressure and force. Cold forming offers several advantages. Firstly, it improves the mechanical properties of the bolt material. The cold – working process induces strain hardening, which increases the strength and hardness of the bolt. Secondly, it is a cost – effective method as it requires less energy compared to hot – forming processes. Cold – formed bolts also have a better surface finish, which can enhance their corrosion resistance and appearance. However, cold forming is limited to certain bolt sizes and geometries, as very large or complex – shaped bolts may be difficult to form using this method.
4.2 Thread Rolling
Thread rolling is an important step in the manufacturing of DIN 933 bolts. After the bolt blank is formed, the threads are created by rolling. This process involves pressing a threaded die against the surface of the bolt shank, causing the material to flow and form the threads. Thread rolling has several benefits. It produces stronger threads compared to cutting threads, as the grain structure of the material is not disrupted. The rolled threads also have a better surface finish, which reduces the risk of galling (seizure) when the bolt is engaged with a nut. Additionally, thread rolling is a faster and more efficient process, contributing to lower production costs.
4.3 Heat Treatment
Although 4.8 – grade bolts are not as highly heat – treated as higher – grade bolts (such as 8.8 or 10.9 – grade), some heat – treatment processes may still be involved. Heat treatment can be used to relieve internal stresses induced during cold forming or to further adjust the mechanical properties of the bolt. For example, a stress – relieving heat treatment can improve the dimensional stability of the bolt and reduce the risk of cracking during subsequent processing or use. In some cases, a light tempering process may be applied to optimize the balance between strength and toughness.
4.4 Surface Treatment
- Zinc Plating: One of the most common surface treatments for DIN 933 4.8 – grade hexagon bolts is zinc plating. Zinc plating provides corrosion protection to the bolt. The zinc layer acts as a sacrificial anode, meaning that it corrodes preferentially to the underlying steel, thus protecting the bolt from rust and degradation. Zinc – plated bolts are suitable for many general – purpose applications in indoor and outdoor environments with moderate corrosion risks. The thickness of the zinc plating layer is carefully controlled to ensure effective corrosion protection while meeting the dimensional tolerances of the bolt.
- Black Oxide Coating: Black oxide coating is another option for surface treatment. This treatment creates a thin, black, oxide layer on the surface of the bolt. Black oxide coatings offer some corrosion resistance and also give the bolt an aesthetically pleasing appearance. They are often used in applications where a more decorative or uniform finish is desired, such as in some consumer products or in applications where a black – colored fastener is required for design reasons. However, black oxide coatings generally provide less corrosion protection compared to zinc plating and are more suitable for less – corrosive environments.
5. Applications
5.1 General Machinery
DIN 933 4.8 – grade hexagon bolts are widely used in general – purpose machinery. In machines such as motors, pumps, and compressors, these bolts are used to fasten various components together. For example, they are used to attach the motor housing to the base, secure the pump impeller to the shaft, or hold the compressor valves in place. The 4.8 – grade bolts provide sufficient strength for these applications, where the loads are typically not extremely high but still require reliable fastening to ensure the proper operation of the machinery. Their relatively low cost also makes them an economical choice for large – scale machinery production.
5.2 Furniture and Appliance Manufacturing
In the furniture and appliance industries, DIN 933 4.8 – grade hexagon bolts are commonly used. In furniture, they are used to assemble frames, attach legs to tables and chairs, and connect different parts of cabinets. In appliances such as refrigerators, washing machines, and ovens, these bolts are used to hold the internal components in place and secure the outer casing. The corrosion – resistant surface treatments available for these bolts make them suitable for use in household environments, where they may be exposed to moisture, humidity, or cleaning agents.
5.3 Construction and Infrastructure
Although higher – grade bolts are often used in critical structural applications in construction, DIN 933 4.8 – grade hexagon bolts still have their place. They can be used for non – structural or semi – structural connections, such as fastening non – load – bearing partitions, attaching electrical conduits to walls, or securing small – scale equipment to building structures. In infrastructure projects, they may be used for similar non – critical fastening tasks, like installing signage or attaching small components to guardrails. Their affordability and ease of installation make them a practical choice for these types of applications.
5.4 Automotive Industry (Non – Critical Applications)
In the automotive industry, while high – strength bolts are used for critical engine and chassis components, DIN 933 4.8 – grade hexagon bolts are used in non – critical applications. For example, they may be used to attach interior components such as seat brackets, dashboard panels, or trim pieces. These bolts need to provide a secure fastening but do not have to withstand the high – stress and high – load conditions experienced by engine or suspension bolts. The automotive industry values the standardization provided by DIN 933, which ensures consistent quality and compatibility of fasteners across different vehicle models and manufacturing plants.
6. Installation and Torque Considerations
6.1 Installation Tools
- Wrenches: A variety of wrenches can be used to install DIN 933 4.8 – grade hexagon bolts. Open – ended wrenches, box – end wrenches, and socket wrenches are commonly employed. The choice of wrench depends on the accessibility of the bolt and the required torque. For example, in a tight – space application, a socket wrench with an extension bar may be more suitable, while an open – ended wrench may be easier to use in a more open area. The wrench size must match the width across flats of the bolt head to ensure a proper grip and prevent slipping, which could damage the bolt head or result in an improper installation.
- Power Tools: In some industrial applications or large – scale assembly operations, power tools such as pneumatic or electric impact wrenches may be used. These tools can quickly and efficiently apply the required torque. However, when using power tools, it is important to calibrate them properly to ensure that the correct torque is applied. Over – torquing can cause the bolt to break or strip the threads, while under – torquing can result in a loose connection.
6.2 Torque Values
Determining the correct torque value is crucial for the proper installation of DIN 933 4.8 – grade hexagon bolts. Torque is the rotational force applied to the bolt to tighten it. The torque value depends on several factors, including the bolt diameter, thread pitch, material, and the type of joint. Manufacturers often provide recommended torque values based on extensive testing. These values are typically specified in Newton – meters (N·m) or foot – pounds (ft – lb). Using a torque wrench to apply the correct torque ensures that the bolt is tightened to the appropriate level. This helps to achieve the desired clamping force in the joint, which is essential for the joint’s integrity and performance. For example, in a mechanical assembly, an insufficient clamping force may allow components to move relative to each other, leading to premature wear, vibration, and ultimately, component failure. On the other hand, excessive clamping force can cause the bolt to stretch beyond its elastic limit or damage the components being fastened.
7. Quality Control and Standards Compliance
7.1 Quality Control in Manufacturing
Manufacturers of DIN 933 4.8 – grade hexagon bolts implement strict quality – control measures. This includes inspecting the raw materials for chemical composition and mechanical properties before production. During the manufacturing process, in – line inspections are carried out to monitor dimensions, thread quality, and surface finish. For example, the thread pitch and diameter are checked using precision measuring instruments to ensure they meet the DIN 933 standards. After production, final inspections are conducted to verify that the bolts meet all the requirements, including mechanical property tests such as tensile and yield strength testing. Only bolts that pass all the quality – control checks are released for distribution.
7.2 Standards Compliance
Compliance with DIN 933 standards is essential for the interchangeability and quality of the bolts. Manufacturers must ensure that their products meet all the dimensional, mechanical, and material requirements specified in the standard. Independent third – party testing and certification may be used to verify compliance. In addition to DIN 933, bolts may also need to comply with other relevant standards, such as ISO (International Organization for Standardization) standards in international markets. Meeting these standards not only ensures the quality of the product but also gives customers confidence in the performance and reliability of the bolts.
8. Comparison with Other Bolt Grades and Standards
8.1 Comparison with Higher – Grade Bolts (e.g., 8.8 – grade)
- Strength Differences: The most obvious difference between 4.8 – grade and 8.8 – grade bolts is in their strength properties. As mentioned earlier, 4.8 – grade bolts have a nominal tensile strength of 400 MPa, while 8.8 – grade bolts have a nominal tensile strength of 800 MPa. This means that 8.8 – grade bolts can withstand much higher loads before failure. 8.8 – grade bolts are often used in applications where higher strength is required, such as in automotive engine components, heavy – duty machinery, and structural steel connections in buildings and bridges.
- Material and Heat – Treatment Differences: 8.8 – grade bolts are typically made of medium – carbon steel that has been quenched and tempered, which results in their higher strength. In contrast, 4.8 – grade bolts may not undergo such extensive heat – treatment processes. The different material and heat – treatment methods also affect other properties such as hardness, ductility, and fatigue resistance. 8.8 – grade bolts generally have higher hardness and better fatigue resistance, making them more suitable for applications with cyclic or high – stress loading conditions.
- Cost and Application Suitability: 4.8 – grade bolts are generally more cost – effective due to their simpler material and manufacturing requirements. They are suitable for applications where the loads are not extremely high and cost is a significant factor. 8.8 – grade bolts, while stronger, are more expensive, and their use is justified when the additional strength and performance are necessary.
8.2 Comparison with Other Standards (e.g., ISO 4017)
- Similarities: ISO 4017 is an international standard for hexagon head bolts that has many similarities to DIN 933. Both standards cover similar dimensions, mechanical properties, and manufacturing requirements for hexagon bolts. In fact, in many cases, bolts produced to DIN 933 can be considered equivalent to those produced to ISO 4017, especially in terms of their basic functionality and interchangeability in international markets.
- Differences: Despite the similarities, there may be some minor differences in specific details such as the tolerance ranges for certain dimensions or the exact test methods specified. These differences are usually the result of the different standard – setting bodies and their historical development. However, in most practical applications, these differences are negligible, and bolts meeting either DIN 933 or ISO 4017 can be used interchangeably without significant issues.
9. Future Developments and Trends
9.1 Material Innovations
As technology advances, there may be new materials developed for fasteners, including DIN 933 – type hexagon bolts. New alloys or composite materials could offer improved strength – to – weight ratios, better corrosion resistance, or enhanced fatigue properties. For example, the development of high – strength, lightweight alloys could lead to bolts that are both stronger and lighter, which would be beneficial in applications where weight reduction is important, such as in the aerospace and automotive industries.
9.2 Manufacturing Process Improvements
Advancements in manufacturing technologies, such as additive manufacturing (3D printing), may also impact the production of DIN 933 hexagon bolts. 3D printing could potentially allow for the production of bolts with complex geometries and customized properties. This could lead to more efficient designs that better meet the specific needs of different applications. Additionally, improvements in traditional manufacturing processes, such as more precise cold – forming and thread – rolling techniques, could further enhance the quality and performance of the bolts while reducing production costs.
9.3 Environmental Considerations
In the future, there will likely be more emphasis on the environmental impact of fastener production and use. This may lead to the development of more environmentally friendly surface treatments that are less harmful to the environment and have a lower carbon footprint. Manufacturers may also focus on reducing waste during the manufacturing process and improving the recyclability of bolts at the end of their life cycle.
In conclusion, DIN 933 4.8 – grade hexagon bolts are an important and widely used fastener in many industries. Understanding their material, mechanical properties, dimensions, manufacturing process, applications, and installation
